Vacuum emulsification machine

FOB Reference Price:Get Latest Price
US $1,900-9,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Homogenizer, Homogenizer mixer
Product Type:
Cosmetic, Cosmetic emulsifing equipment
Application:
Viscous Fluid
Additional Capabilities:
Milling
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
DAFENG
Model Number:
RH
Max. Loading Capacity:
500L
Voltage:
220V/380V
Power(W):
0.75KW~45KW
Dimension(L*W*H):
500*500*5~3000*3800*12
Certification:
CE ISO
Machine Type:
Emulsifier machines
Main Equipment:
Emulsifying mixer boiler,water mixer boiler, oil mixer boiler etc
Material:
Stainless Steel 304 / SUS316L
Product name:
Vacuum emulsification machine
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export standard
Port
ningbo or shanghai
Lead Time :
30 days
Product Description

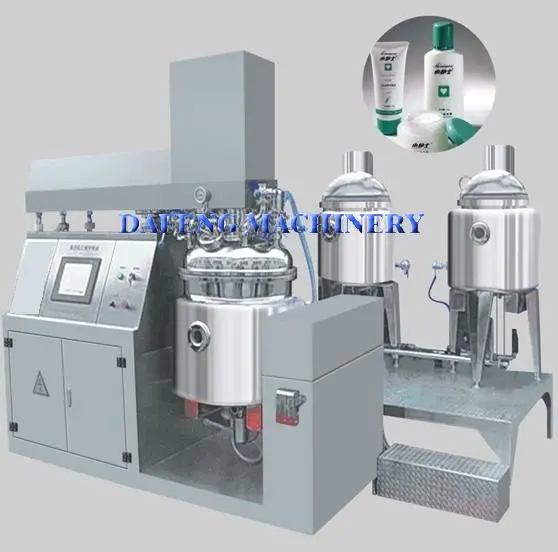

 Vacuum emulsification machine

Vacuum emulsion machine is widely used in the fields of cosmetics and ointment products processing line, the whole equipment of this system is composed of emulsifying mixer boiler, pretreatment boiler, vacuum system, hydraulic system, electric control ystem, and working platform.



The main equipments:

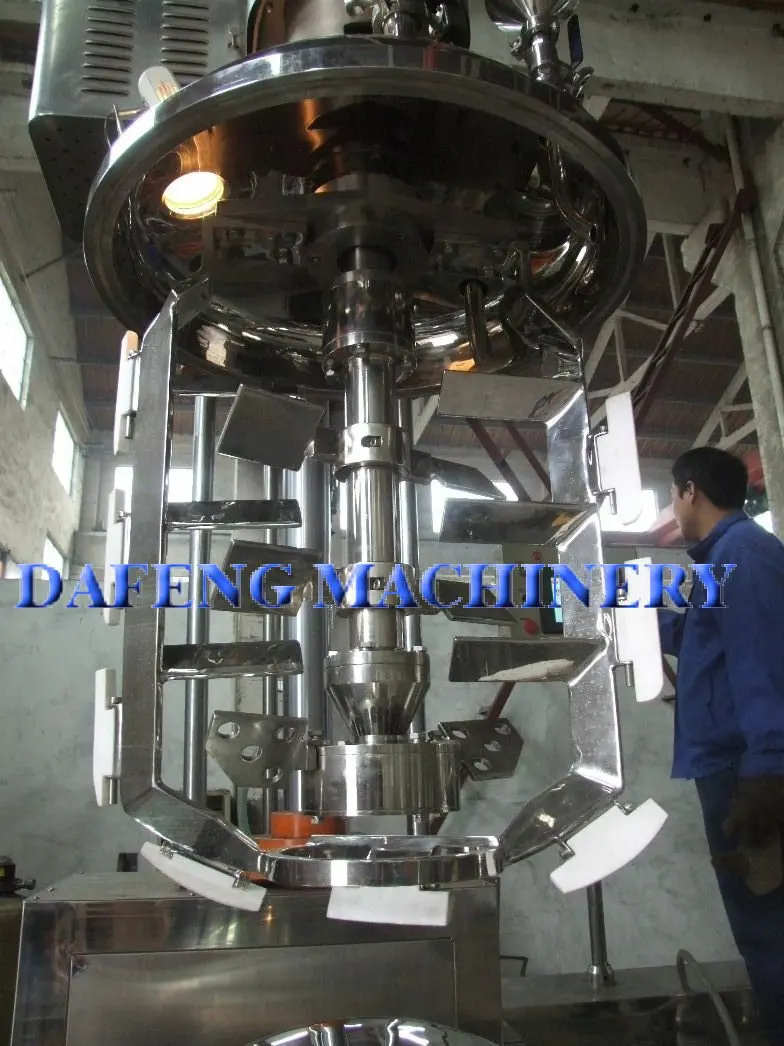

  • 1, Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
  • 2, Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
  • 3, Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully;
  • 4,Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation;
  • 5,Customer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min;
  • 6, Features:stable compact, good quality,low price;
  • 7, Suitable cream, paste ,ointment, lotion ,gel,conditioner,milk, sauce,etc.

Technical parameter:

ModelMain mixer Oil&water pre-mixersDimensions total power
steal/electric
heating
 LLL*W*H?(mm)kw
RHJ-10L105/81700*1200*12501.1/5
RHJ-20L2016/101850*1400*13501.5/5
RHJ-50L5025/402100*2000*21004.5/16.5
RHJ-100L10050/402600*2100*22006/27
RHJ-200L200100/1602600*2500*23008/32
RHJ-300L300250/1502800*2700*270010/37
RHJ-500L500420/2502900*2800*275016/52



















Company Information

Our company’s advantages over other companies:



      Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.



Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.

Our Services

Our company’s quality certification:



We have got CE, PED, ISO9001 (2008) certificates.



Packaging & Shipping

Shipping method including: Courier (DHL, FEDEX etc), By Airline, By Sea

Price Term including: EXW, FCA, FOB, CIF etc.

Payment:  L/C,T/T,D/P,D/A,PAYPAL,WESTERN UNION,MONEY GRAM etc.
