Quick Details

  • Condition: New
  • Mixer Type: Agitator
  • Product Type: Liquid
  • Application: Liquid with Suspended Solids
  • Additional Capabilities: Granulating
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: DF
  • Model Number: MV
  • Max. Loading Capacity: 4800l
  • Voltage: 220/240/380 volt 50/60 Hz
  • Power(W): 5.5KW
  • Dimension(L*W*H): Accordingly
  • Certification: CE,ISO9000
  • Warranty: 2 years
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Material: Stanless steel SUS304or SUS316L
  • processing: liquid,cleaner,cosmetic blending and mixing
  • type: blending vessels
  • variable speed: 36-100rpm
  • structure: single layer/three layer ( can customized)

Packaging & Delivery

Packaging Details Exported Woodcase packing





Product Description

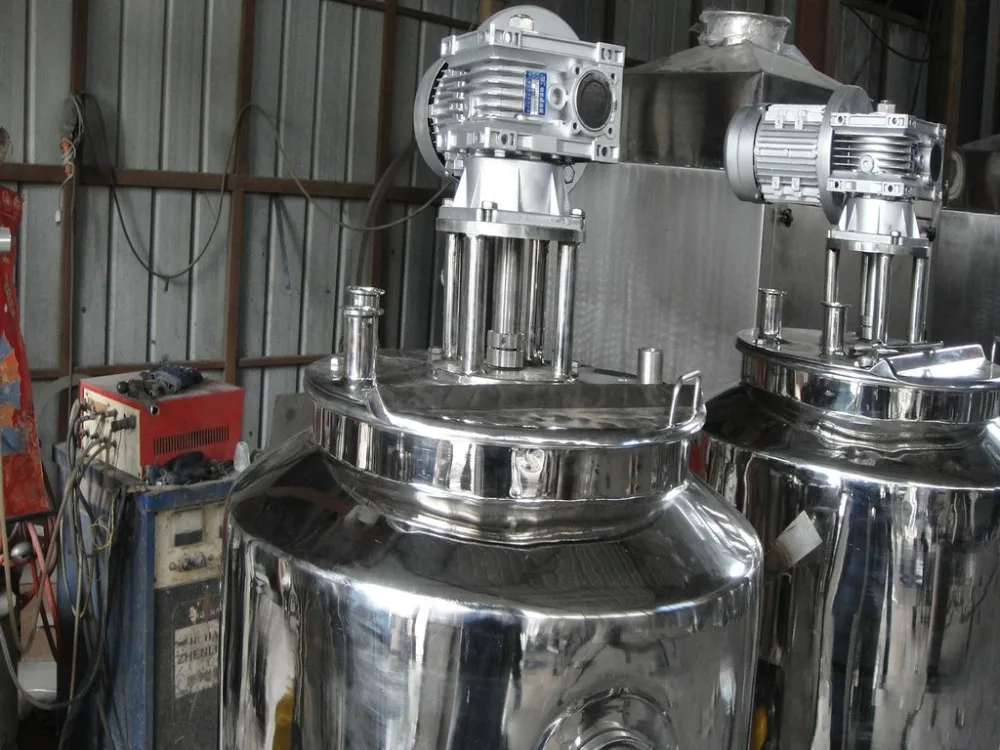

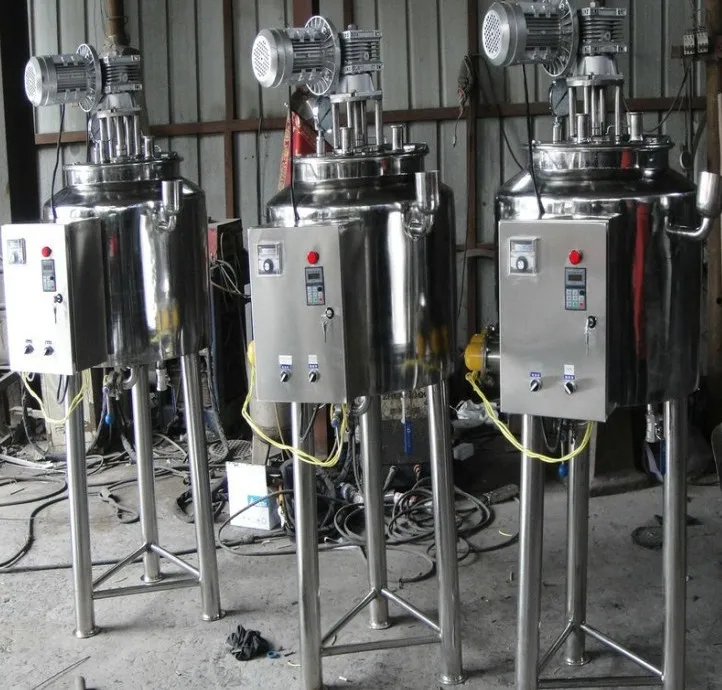

                            electric heating soap blending tank

The series of liquid dispensing tanks strictly conform to the requirements in Article 31 and Article 31 in “Quality Management Specification for medicine Production“GMP General rules (revision in 1998) and are designed,manufactured and inspected according to the requirements of GB150-98”steel pressure Vessels”and JB/T4735-97”Steel welded Atmospheric pressure Vessels”

Item name

   Mixing tank ,mixer

Material

Stainless steel 304/stainless steel 316L

Application

Daily chemical care products, , pharmacy, food industry





Product features





1)      With CE,ISO,GMP standards

2)      Low / high speed agitator

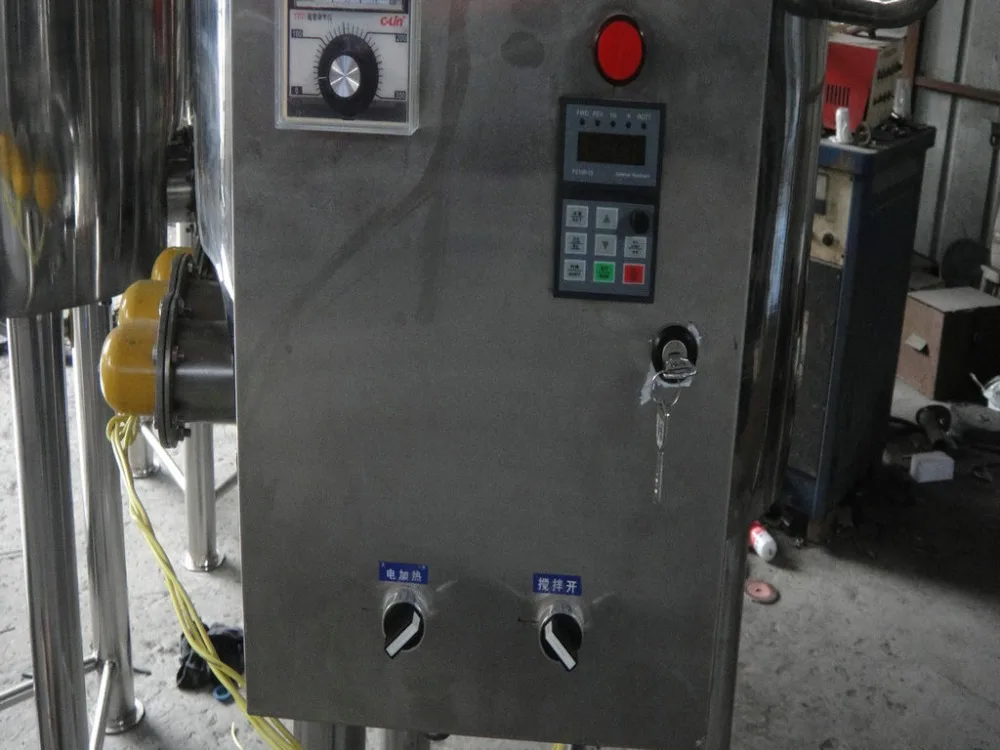

3)      Frequency controller for adjusting stir speed

4)      Vacuum, double jacketed

5)      The range of volume is 500L-5000L

6)      The pot could heat& cool the material, electric heating or steam heating

7)     Agitator type to your requirements: blade, frame, scraper stirrer homogenizer

 your satisfication is our big mission:)


Specification:

   1 the heat preservation material of the vessel is high-temperate resistant and anti-aging polyurethane blister or pearl cotton.

   2 the interface adopts internationally general ISO rapid installation chuck type product.the internal bladder adopts imported stainless steel SUS316L or SUS 304. the internal surface adopts mirror polishing unit RA less than 0.28um,and the external surface adopts polishing, mirror polishing,sandblasting ,cold rolling original color matte treatment.All of the above conform to GMP standard.

    3 the selling of the blender adopts imported sanitary mechanical seal device,and the blending rotation speed is optional

    4 the pipe mouth is provided with liquid meter vent (static pressure type,capacitance type,non-contact type ,ultrasonic type or glass tube type),air spiracle,thermometer(digital indication type or dial plate type) CIP cleaning vent,sight glass,anti-explosion view lamp(integrated sight glass and view type),SIP sterilization vent, liquid inlet and outlet ,sanitary manhole and etc.

  5 the volume varies within the range of 100L-10000L ,or design and manufacturing can be made according to actual requirements of customers

   6 the GMP certification document attached in the machine are avalible(including material report,certification of outsourcing parts,verification form and etc.

Application range:

 It can be used as the reacting tank in paint, emulsion, adhesive, petroleum can be widely used in petroleum, chemical, rubber, pesticide, dye, medicine and food industry. Used to achieve curing, hydrogenation, alkylation, polymerization, condensation process. Food procession, cosmetics production, chemical industry, dyeing and printing facilities, essence and fragrant substance production, fine chemical industry, emulsification of diesel oil and pitch.
Product details:




Technical parameter:


Volume

Working pressure (Mpa)

Work.TEMP.(°C)

Agitation speed(rpm)

H(mm)

H1(mm)

D(mm)

D1(mm)

h(mm)

100

0.25

100

0-720

1750

450

φ750

φ550

300

200

0.25

100

0-720

1950

600

φ850

φ650

300

600

0.25

100

0-720

2500

1000

φ1100

φ900

350

1000

0.25

100

0-720

2850

1200

φ1300

φ1100

350

2000

0.25

100

0-720

3350

1500

φ1500

φ1300

350

3000

0.25

100

0-720

3700

1700

φ1700

φ1500

350

5000

0.25

100

0-720

4250

2000

φ2000

φ1800

400

10000

0.25

100

0-720

5000

2500

φ2500

φ2300

400








Company Information

Our company’s advantages over other companies:



      Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.

We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.

Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.



Our company’s quality certification:



We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.

Our company’s customer segmentation:

Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,

Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.



Choose us and get more benefits:



1. Deliver innovative products in the market at a faster pace;

2. Enhance the reliability of product’s quality;

3. Decrease the total cost of the product effectively;

4. Improve research personnel’s ability of creative design;

5. Gain more leading technologies about product development and increase the competitive advantage of products.

Our Services



Pre-sale service:



1. Free of making offers, craft and technical guidance.

2. We can provide company’s qualification certification and the drawings.

3. We can also make customized products according to customer’s needs.



After-sale service:



1. We provide long-term after-sale service.

2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
