Quick Details

  • Condition: New
  • Type: Other
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Dafeng
  • Model Number: MT-500L
  • Voltage: 220v/380v, 440v/380v
  • Power(W): 1.5KW - 75 KW
  • Dimension(L*W*H): 3500*3200*2800mm
  • Weight: 1t-22t
  • Certification: CE ISO
  • Warranty: 2 Years
  • After-sales Service Provided: Engineers available to service machinery overseas
  • material: stainless steel SUS304/316L
  • processing type: Sugar dissolving system or say sugar refining equipment
  • process: sugar dissolving and melting system
  • Application: Sugar,candy,chocolate
  • small scale sugar processing equipment: sugar processing equipment
  • Name: Sugar dissolving tank,Sugar melting tank
  • Product name: sugar melting pot

Packaging & Delivery

Packaging Details wooden case
Delivery Time 40days

Specifications

Sugar refining equipment
1.melting tank,5-500hl
2.Sugar melting equipment,sugar dissolving system,small scale sugar processing equipment
3.material,stainless steel304/316L

Product Description

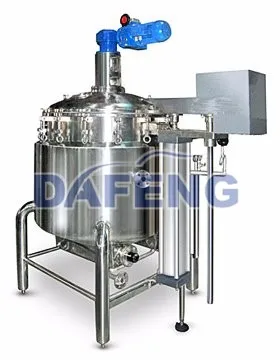

Sugar dissolving tank,Sugar melting tank,Small scale sugar melting pot/Small scale sugar processing equipment

sugar melting system



Process-Sugar melting boiler,syrup pimp,syrup filter,preparation tank,syrup pump,syrup cooler



In the beverage industry, sugar is mostly processed as a watery solution. Therefore, the first step is the production of a standardized sugar syrup. The concentration is between 60 ... 67° Brix. Discontinuous and continuous processes are applied in the beverage industry.


Discontinuous process with Sugar Melting Tank
For discontinuous processes mixers are used, the capacity of which can vary according to the prepared granular sugar quantity. The required quantity of well-tempered dissolving water is provided in the mixer. By means of a pneumatical or mechanical conveyor the granular sugar is fed to the mixer. When the dissolving procedure is finished, the sugar syrup is filtered and pasteurised and then, in a filtered condition, passed on to a buffer tank.


Continuous process with hot/cold Sugar Melting Tank
The continuous processes can be divided into cold and hot dissolving procedures. These procedures require a granular sugar silo and a corresponding tank capacity for sugar syrup. Granular sugar and dissolving water are fed to the dissolving tank in the desired ratio. A circulating pump ensures a homogeneous suspension. A partial flow is supplied to the buffer tank, either via a gap filter (cold dissolving) or a pasteurisation (hot dissolving) with integrated filtration and deaeration.

Special features:

High, constant product quality
Little wear, i.e. low maintenance requirements
Cleanability of the system

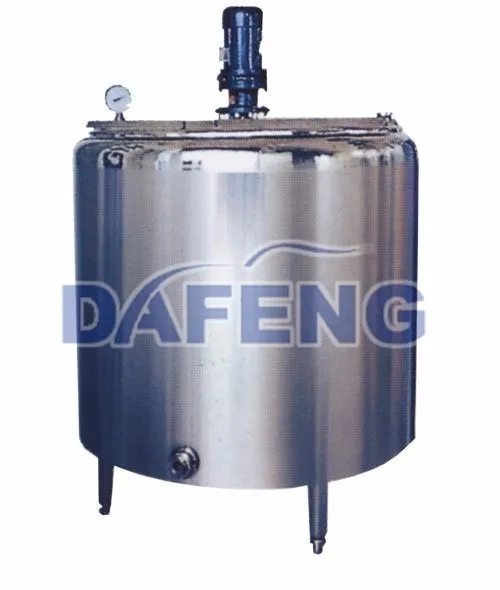

Melting Tank(dissolving Tank)
Model
Volume
Size
Medium Inlet/outlet
   ID
   OD
  L
  H
ACT-1000
1000L
1100
1220
900
2200
40A
ACT-2000
2000L
1350
1470
1000
2600
ACT-4000
4000L
1700
1820
1100
3000
ACT-6000
6000L
1900
2020
1150
3450
ACT-8000
8000L
2100
2220
1300
3700
ACT-10000
10000L
2300
2420
1400
3850
ACT-15000
15000L
2700
2820
1650
4150
ACT-20000
20000L
3000
3120
1800
4400
                50A
ACT-50000
50000L
3000
3120
1800
9000
                65A






Company Information



Our company’s advantages over other companies:

  Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.



Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
