fermentation reactor

FOB Reference Price:Get Latest Price
US $990-5,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Automatic Grade:
Semi-Automatic
Type:
Tower Reactor, fermentation reactor
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
DF
Model Number:
FYF-adhesive Making Machine
Voltage:
380/220v, 220/240/380 volt
Power(W):
1.1-36KW
Dimension(L*W*H):
500mm*500mm*2000mm ~ 3500mm*3500mm*8000mm
Weight:
600kg-8000kg
Certification:
CE,ISO
Material:
stainless steel304,316L
application:
ployenthylene,dye staffs,pesticide,paints,
Item name:
Chemical Reactors,chemical reactors agitated,chemical jacketed reactor
Capacity:
50-20000L
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
200 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
Export standard wooden case package
Port
ningbo or shanghai
Lead Time :
30days

Product Description







Stainless Steel Fermentation reactor



Fermentation reactor is the reaction kettle for substances, such as protein, fat, amino acid, peptide, sugar ect. After thermal reaction under high temperature, to produce the substances full of strong and intens fragance of cook meat.

And the whole unit is a key device used to produce unsaturated polyester resin, phenol formaldehyde epoxy, ABS resin and paint. The whole set consists of such parts as reactor, vertical fractionating column, horizontal condenser, cistern, oil scupper and pipelines ( diluting reactor ). Its parts contacting material are all made of stainless steel.



Technical Parameter

Model and specification

LP300

LP400

LP500

LP600

LP1000

LP2000

LP3000

LP5000

LP10000

Volume (L)

300

400

500

600

1000

2000

3000

5000

10000

Working pressure

Pressure in kettle



≤ 0.2MPa

Pressure of jacket

≤ 0.3MPa

Rotator power (KW)

0.55

0.55

0.75

0.75

1.1

1.5

1.5

2.2

3

Rotation speed ( r/min)

18—200

Dimension (mm)

Diameter

900

1000

1150

1150

1400

1580

1800

2050

2500

Height

2200

2220

2400

2500

2700

3300

3600

4200

500

Exchanging heat area (m²)

2

2.4

2.7

3.1

4.5

7.5

8.6

10.4

20.2

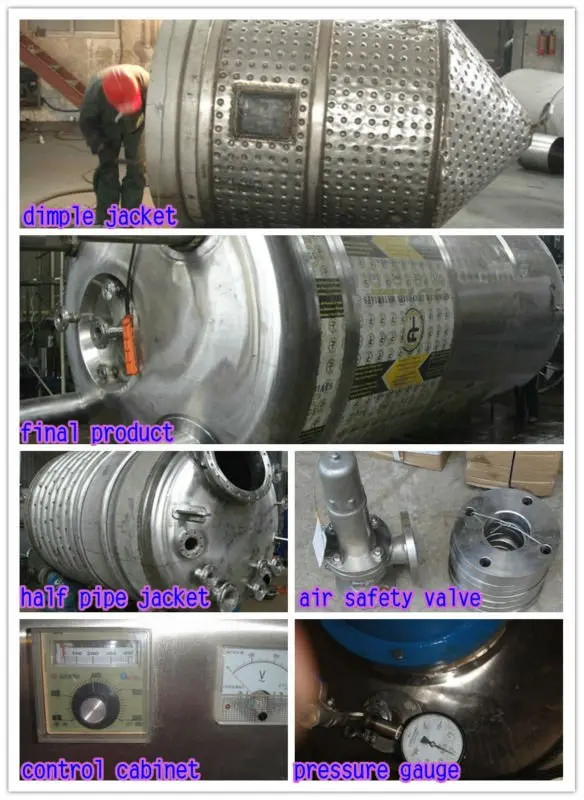

More reference pictures





Advantages:
  1. Manufactured with international advanced technology.
  2. Neat and beautiful appearance, reasonable structure, perfect function and stable performance.
  3. No dead-end design.
  4. Heating and cooling (optional).
  5. Production according to GMP requirements.
  6. High quality material be selected

FAQ



Q:How do I pay for my purchase order?

        A:T/T or L/C.

Q:Whats the delivery time?

        A:It will take about 30 days to finish an order,but the exact time is according to actual situation.

Q:How about the warranty control?

        A:One year warranty for the machineries since sold.If quality problem occurs,please feel free to contact us.

  1.
    Company Information



    Dafeng company specialized in developing, designing, and manufacturing chemical reactor, storage tank, movable tank with various volume.



Our Services



Pre-sale service:



1. Free of making offers, craft and technical guidance.

2. We can provide company’s qualification certification and the drawings.

3. We can also make customized products according to customer’s needs.



After-sale service:



1. We provide long-term after-sale service.

2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.



Packaging & Shipping



 Shipment



Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.

Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
