Electric heated syrup melting tank

FOB Reference Price:Get Latest Price
US $2,000-9,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Mixer
Condition:
New
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
DF
Model Number:
HMV180
Processing Types:
food,syrup,sugar
Voltage:
220/380V
Power(W):
1.5KW
Weight:
100kg-5000kg
Dimension(L*W*H):
1500*1400*2200mm
Certification:
CE ISO
Warranty:
2 Years
After-sales Service Provided:
Engineers available to service machinery overseas
type:
syrup melting tank
capacity:
500L-5000L
insulation:
PU/rockwool insulation
Name:
Electric heated syrup melting tank
Material:
Stainless Steel SUS304
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export package
Port
ningbo/shanghai
Lead Time :
30days



Product Description





Electric Heat Syrup Melting Tank



 Introduction of Chocolate melting tank

 Our chocolate melting and tempering mixer tank from 75kg to 6000kg, also we can specially made according to your special needs. It can be used for melting, storage and heat maintaining for chocolate,

axunge and similar coating materials.

 The stainless steel tank has a sandwich with constant temperature control, and a strong mixing and scraper device inside

 Other components including a jacket and insulation layer,used for external heating, heat preservation and insulation.



Feature

 1.temperature adjustment 2.melting and storage function

 3.with scraper, mixer and stir device  4.stainless steel 304/SS316L

 5.digital temperature control system 6.with jacket, can be used for external heating and heat preservation



Technical Parameter

MT
300

MT
400

MT
500

MT
600

MT
1000

MT
2000

MT
3000

MT
5000

MT

10000

Cubage(L)

300

400

500

600

1000

2000

3000

5000

10000

Pressure

Internal bladder

≤ 0.2Mpa

Insert set

≤ 0.3Mpa

Power Kw

0.55

0.55

0.75

0.75

1.1

2.2

3

5.5

5.5

Speed of impeller

18=200r/min

Outlook size

Diameter

900

1000

1150

1150

1400

1580

1800

2050

2500



Height

2200

2220

2400

2500

2700

3300

3600

4200

5000

Heat transfer area

2

2.4

2.7

3.1

4.5

7.5

8.6

10.4

20.2

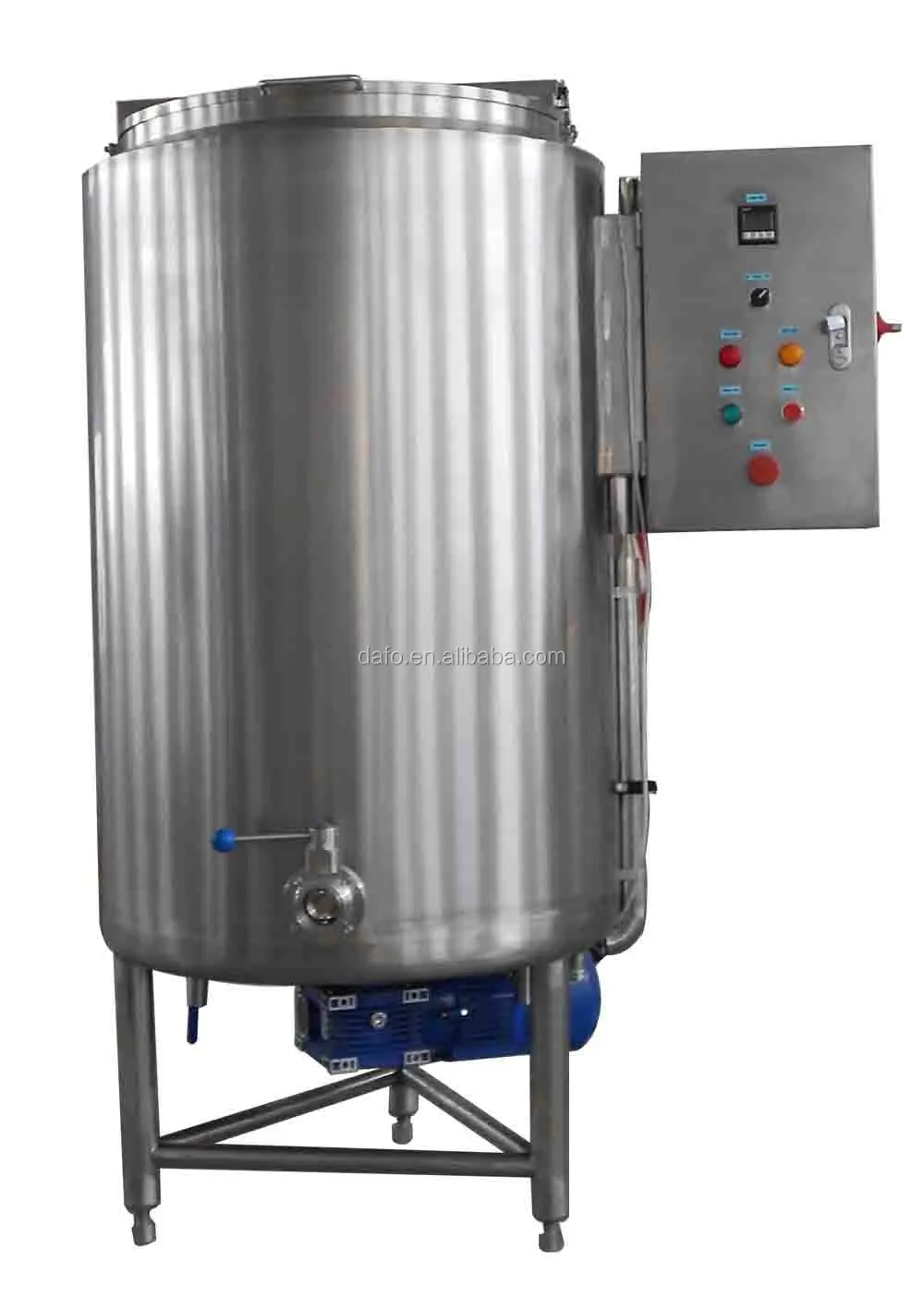

  Chocolate insulation tank.jpginsulate tankChoco.jpgDafeng SS.304 Sugar Dissolve TankDafeng SS.304 Sugar Dissolve Tank





Company Information




ce

Packaging & Shipping

Shipping method including: Courier (DHL, FEDEX etc), By Airline, By Sea

Price Term including: EXW, FCA, FOB, CIF etc.

Payment:  L/C,T/T,D/P,D/A,PAYPAL,WESTERN UNION,MONEY GRAM etc.
