Quick Details

  • Condition: New
  • Mixer Type: Agitator
  • Product Type: Cosmetic
  • Application: Viscous Fluid
  • Additional Capabilities: Granulating
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: DF
  • Model Number: EMT
  • Max. Loading Capacity: 500L/1000L
  • Voltage: 220/240/380 volt
  • Power(W): customized
  • Dimension(L*W*H): As per required
  • Certification: CE,ISO9000
  • Warranty: 2 years
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Item name: 500L pharmaceutical blending tank,jacket mixing vessel
  • capacity: 500L
  • Process: Double Jacketed for electric heating,mixing.
  • material: stainless steel 316L,outer 304
  • electric heated power: 24KW
  • application: Medicine,injection,pure water,oral etc
  • Heating method: By steam or electric,can be customized.

Packaging & Delivery

Packaging Details Export standard wooden case packing
Delivery Time 30days



Product Description

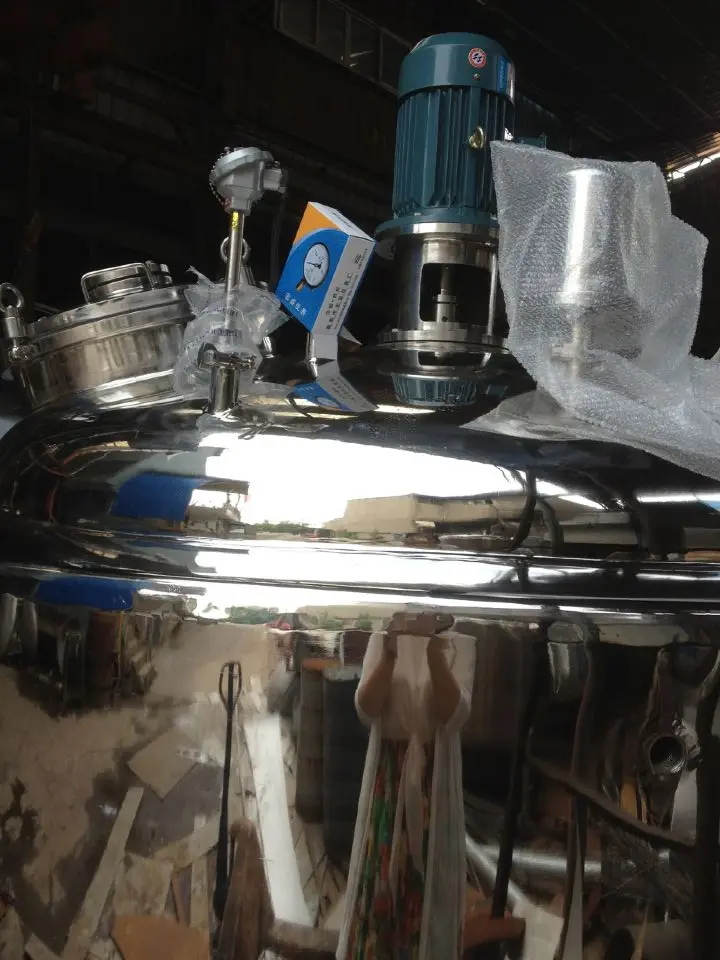

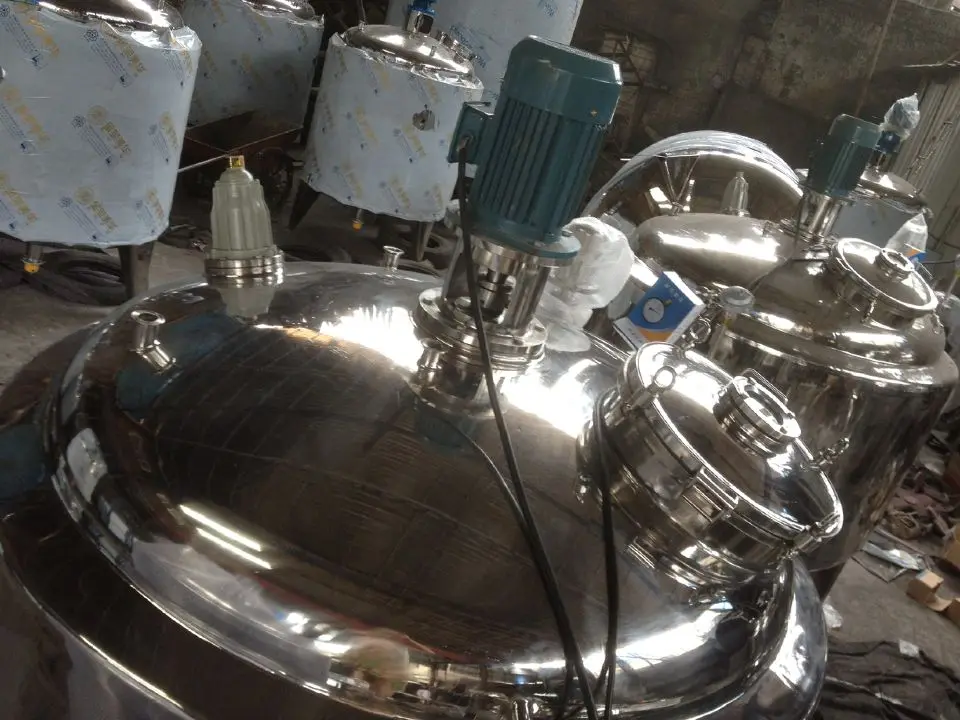

500L pharmaceutical blending tank





It is an ideal one for mixing and blending process applied in medicine,chemical and foodstuff in emulsification etc.







Characters

1. Triplicate mixer in main kettle make structure concisely and economize seal step and installation space.

 All components made strictly according to excellent craft.
2. Since mechanical seal kept clean and lubricated enough, the main kettle seal is also steady and safe even under high temperature and speed conditions.
3. Mix speed: 0~100rpm, inverter various speed adjustment,adjustment of mixing.
4. Mix model could be assembled optimized according to specific material.
5. Inlet material with vacuum valve is proper for powder material craft and resolve problems of powder flying and unbalanced blending thoroughly.
6. Running in condition of super vacuum, the whole process achieves special pharmaceutic requirement of sanitation,asepsis.
7. Main kettle assembles CIP cleanness system.

Part of material touch is made of SS304 or SUS316L material imported, also managed with mirror polishing and roughness achieving to sanitary degree of 300EMSH.
8. The whole equipment made by according to GMP requirements.



 Tank with mixer and heating function.

Cubage200L300L500L1000L
Work Pressure0.06---0.09Mpa
Stirrer Rotate Speed36r/Min
Heating Area (M2)1.62.03.54.5
Motor Power (KW)0.750.750.751.1

Material Outlet

Diamension (DN)

40404050
Heating Power (KW)12182436





One set of complete agitator-propeller agitator,including one motor,with a frequency inverter from variable speed 0-1400rpm.
for normally propeller agitator there are rarely supplier can rise to so high speed,but we can.










The Control cabinet for switch on/off,stirring on/off,adjust stir speed,digital display of temperature,digital liquid level as ''cm'' shows,digital speed shows etc.
In the meanwhile,we also can make the control cabinet according to your requirement.










Company Information



Our company’s advantages over other companies:

  Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.

We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.



Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.









Our company’s quality certification:



We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.



Our company’s customer segmentation:



Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,

Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.



Choose us and get more benefits:



1. Deliver innovative products in the market at a faster pace;



2. Enhance the reliability of product’s quality;



3. Decrease the total cost of the product effectively;



4. Improve research personnel’s ability of creative design;



5. Gain more leading technologies about product development and increase the competitive advantage of products.

Our Services



Pre-sale service:



1. Free of making offers, craft and technical guidance.



2. We can provide company’s qualification certification and the drawings.



3. We can also make customized products according to customer’s needs.

After-sale service:



1. We provide long-term after-sale service.



2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.

Packaging & Shipping



 Shipment



Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.



Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.

FAQ





We can offer several payment methods which can ensure your capital’s security, such as the following:



L/C   T/T   D/A   D/P



Western Union



MoneyGram
