20000L FYG series resin agitated and jacketed reaction vessel

FOB Reference Price:Get Latest Price
US $1,500-15,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Paddle
Product Type:
Paint
Application:
Liquid with Suspended Solids
Additional Capabilities:
Milling
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
DF
Model Number:
FYG
Voltage:
380v/440v
Power(W):
as per required
Dimension(L*W*H):
as per required
Certification:
CE,ISO9001
Warranty:
2 years
After-sales Service Provided:
Engineers available to service machinery overseas
type:
FYG series resin agitated and jacketed reaction vessel
material:
stainless steel 304,316L
volume:
20000L
heat transfer method:
full jacket,outer half-tube, inner coil type
heating method:
electric,steam,or oil heated
reaction pressure:
-0.1~0.6Mpa
equipment material:
SS304, SS316L/ Q235-B carbon
stirring style:
anchor,paddle, dispersing disc etc
SupplyAbility
SupplyAbility:
80 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case package or standard packing
Port
ningbo/shanghai
Lead Time :
30days

Product Description





Reaction Vessel



1. Intro



a. Reaction Vessel is widely used in industries such as petroleum, cheemical industry, paint & printing ink, pharmacy, food etc..



b. It is used as pressure container for vulcanization, nitration, hydrogenation,alkylation, polymerization, consendation processing such as reaction kettle, polymerization kettle, reator, decomposition vessels etc..



c. It normally adopts carbon manganese steel, stainless steel, zirconium,nickel alloy as well as other compound materials.



d. mainly manufacture reaction kettle made of stainless steel or carbon steel.



2. Main features



a. Dafeng reaction kettle can be classified into three kinds: Reaction Kettle with open flat cover, Reaction Kettle with open butt welded flange and closed Reaction Kettle. Each kind has its own wide application range and merits.



b. Reaction Kettle consists of components such as kettle body, kettle cover, jacket, agitator, driving device, shaft sealing device, support etc..



c. Various seals (packing seal, mechanical seal, magnetic seal) are available according to different requirements of mixing processing.



d. Regular agitators: anchor type, impeller type, turbine type, propeller type or frame type etc.. If the height and diameter of the kettle are comparatively big, then multi-layers propeller is advisable. Agitators can also be selected and designed according to production processing.



e. Heating method: electric heating, steam heating, hot water heating, heat transfer oil circulation heating, far-infrared heating etc..



Cooling method: jacket cooling, interior and exterior limpet coil cooling.



f. Support seat: ground type or platform lug type.

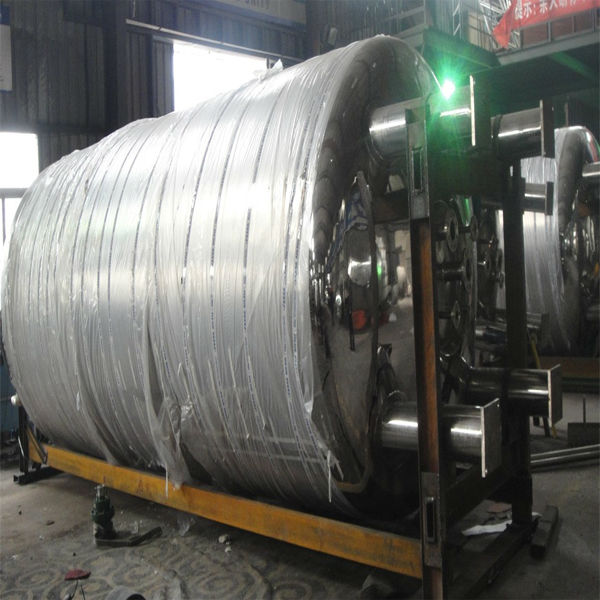

Detailes pictures


Technical Parameter



Pressure Rating: I pressure container IIlow pressure container, II mid pressure container, normal pressure container.



Volume: 0.01-20 m3



Materials: SS304,SS316L,SS321,Q235



The part contacting with materials can be SS304, SS316L SS321, Q235.



Seal: Mechanical Seal, Packing Seal, Hermetic Seal, Rubber Lip Seal, Magnetic Seal.



Heating: electric heating, steam heating, hot water heating, heat transfer oil circulation heating, far-infrared heating etc.


Mixer type for high speed or slow speed

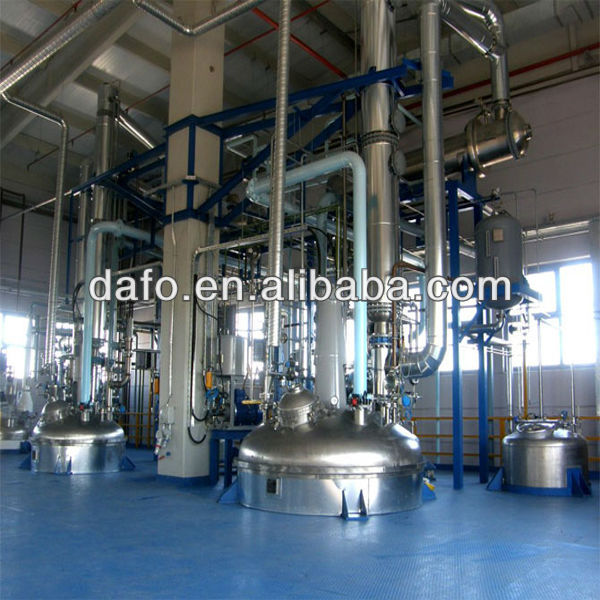

Our excellent Projects for our Golden customers






Company Information

Our company’s advantages over other companies:



      Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.

We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.

Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.

Our Services

Our company’s quality certification:



We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.

Our company’s customer segmentation:

Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,

Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.

Packaging & Shipping

Shipment



Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.

Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
